ÂM THANH

Tích hợp

BẢO VỆ

IK 10, IP 67

BÁO ĐỘNG

Alarm in, Alarm out

ĐỘ PHÂN GIẢI

2MP

CHỐNG NGƯỢC SÁNG

True WDR 120dB

HÌNH DÁNG

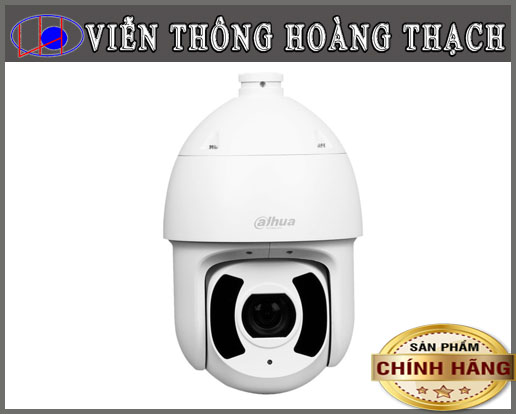

Camera PTZ

LOẠI

IP Camera

TẦM NHÌN BAN ĐÊM

Hồng ngoại 200m-500m

THƯƠNG HIỆU

DAHUA

TÍNH NĂNG ĐẶC BIỆT

Auto tracking, IVS, Phát hiện khuôn mặt, SMD

ZOOM QUANG

32X

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux@F1.6 (IR light on)

Illumination Distance

250 m (820.21 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

6 (IR)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 60.2°–2.7°; V: 34°–1.5°; D: 68°–3°

Optical Zoom

32×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.8 m–5.0 m ( 2.62 ft–16.40 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

1,986 m (6,915.75 ft)

785 m (2,575.46 ft)

398 m (1,305.77 ft)

198 m (649.61 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–260°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 0°/s–300°/s
Tilt: 0°/s–200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD
Pelco-P/D(Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/Human Alarm Classification; linkage tracking

Face Detection

Face detection; bounding box; optimization; capturing pictures; uploading high-quality face snapshots; face enhancement.
Face attributes: Gender, age, facial expressions (Anger, sad, antipathy, fear, surprise, calm, happy, and confused), face mask, and mustache.
Face image and 1 inch photos are supported for face cutouts.
Face capture: Real-time snapshot, face priority, and quality priority.

Auto Tracking

Yes

SMD

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

1080p(1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 kbps–14848 kbps
H265: 38 kbps–8960 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Yes

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view.

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

1×RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 42 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DSS; DMSS; Easy4ip; Smart PSS; IVSS

Mobile Client

iOS; Android

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recording; alarm digital input; audio; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Alarm I/O

7/2

Audio I/O

1/1

Power

Power Supply

24 VDC, 2.5 A ± 25%, PoE+ (802.3at)

Power Consumption

Basic: 15 W
Max.: 29.5 W (illuminator + heater + PTZ)

Environment

Operating Temperature

–40 °C to + 70 °C (–40 °F to + 158 °F)

Operating Humidity

≤ 95%

Protection

IP67; IK10; TVS 8000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

337.4 mm × Φ209 mm (13.28" × Φ8.23")

Net Weight

5.8 kg (12.79 lb)

Gross Weight

9.4 kg (20.72 lb)
