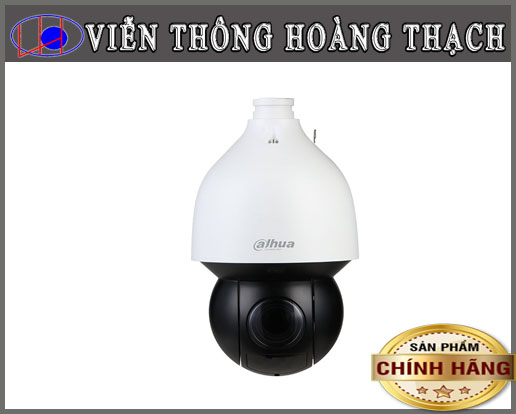

DH-SD5A432GB-HNR

DH-SD5A432GB-HNR

Giá online: 20,826,000 đ Bảo hành chính hãng Địa chỉ bảo hành

- Bảo hành VIP : HƯ GÌ ĐỔI NẤY thêm 10-15-20-25% ứng với 1- 3- 6 -12 tháng

- Lắp đặt- Sửa chữa- Thay thế chỉ từ 200k bán kính 10km Chi Tiết

Giá Đại Lý: 0 đ(Áp dụng đại lý lấy đơn trên 5 triệu)

- +
THÊM VÀO GIỎ HÀNG
MUA NGAY
DH-SD5A432GB-HNR
- Cảm biến STARVIS™ CMOS kích thước 1/2.8″
- Độ phân giải 4 Megapixel 25/30fps@4MP
- Chuẩn nén hình ảnh H.265+
- Công nghệ Startlight với độ nhạy sáng cực thấp 0.005Lux/F1.6 (ảnh màu), và 0Lux/F1.6 (ảnh hồng ngoại).
- Tầm xa hồng ngoại 150m
- Ống kính zoom quang học 32X (4.8 mm–154 mm), zoom số 16x.
- Quay quét ngang (PAN) 0°~360° tốc độ 300°/s, quay dọc lên xuống -20°~+90°, tốc độ 200°/s, hỗ trợ lật hình 180°
- Hỗ trợ cài đặt trước 300 điểm với giao thức (DH-SD), 5 khuôn mẫu (Pattern), 8 hành trình (Tour), 5 tự động quét (Auto Scan) và tự động quay, (Auto Pan), hỗ trợ chạy lại các cài đặt trước khi có thao tác điều khiển (Idle Motion).
- Hỗ trợ các tính năng thông minh AI như: SMD Plus – Phân biệt người và xe, Hỗ trợ phát hiện khuôn mặt, Auto Tracking, Phát hiện tụ tập, lãng vãng, phát hiện đỗ xe trái phép, phát hiện vật thể bị bỏ rơi, bị lấy mất…
- Cổng audio 1 vào 1 ra, cổng báo động 2 kênh vào 1 kênh ra.
- Chuẩn chống nước IP67; Chống va đập IK10, Chống sét 6000V, chống sét lan truyền,
- Hỗ trợ thẻ nhớ 512GB

DH-SD5A432GB-HNR



ÂM THANH

Hỗ trợ

BÁO ĐỘNG

Alarm in, Alarm out

BẢO VỆ

IK 10, IP 67

CHỐNG NGƯỢC SÁNG

True WDR 120dB

ĐỘ PHÂN GIẢI

4MP

HÌNH DÁNG

Camera PTZ

LOẠI

HD Analog

TẦM NHÌN BAN ĐÊM

Hồng ngoại 100m-200m

THƯƠNG HIỆU

DAHUA

TÍNH NĂNG ĐẶC BIỆT

Auto tracking, IVS, Phát hiện khuôn mặt, SMD

ZOOM QUANG

32X



*** Thông tin chi tiết DH-SD5A432GB-HNR

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR

Illuminator Number

4 (IR)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.8 m–5.0 m (2.62 ft–16.40 ft)

Iris Control

Auto; manual

Detect

Observe

Recognize

Identify

DORI Distance

2,124 m (6,968.50 ft)

839 m (2,752.63 ft)

425 m (1,394.36 ft)

212 m (695.54 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–300°/s

Tilt: 0.1°/s–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Auto Tracking

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

SMD

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP

Interoperability

ONVIF (Profile S&G&T); CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Alarm I/O

2/1

Audio I/O

1/1

Two-way Audio

Yes

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

24 VDC, 2.5 A (± 25%)
PoE +(802.3at)

Power Consumption

Basic: 13 W
Max.: 22 W (illuminator + PTZ working)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

332 mm × Φ190 mm (13.07" × Φ7.48")

Net Weight

4.7 kg (10.36 lb)

Gross Weight

8 kg (17.64 lb)
