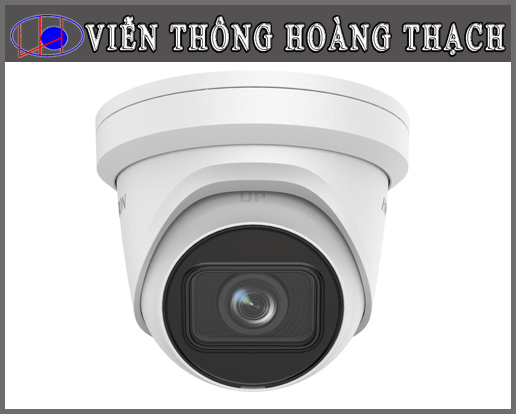

DS-2CD2H23G2-IZS – Camera IP có ống kính chuyển động
Thông số cơ bản của camera DS-2CD2H23G2-IZS
- Hình ảnh chất lượng cao với độ phân giải 2 MP
- Thấu kính đa tiêu cự có động cơ để dễ dàng lắp đặt và giám sát 2.8mm-12mm
- Hình ảnh rõ nét khi ngược sáng mạnh nhờ công nghệ WDR 120 dB
- Công nghệ nén H.265+ hiệu quả
- Chống nước và bụi (IP67) và chống phá hoại (IK10)
- Tập trung vào phân loại mục tiêu con người và phương tiện dựa trên học sâu
Thông số Kỹ thuật chi tiết camera DS-2CD2387G2P-LSU/SL
Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 106.6° to 31.7°, vertical FOV 54.7° to 17.7°, diagonal FOV 130.3° to 36.4°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.6
DORI
- DORI2.8 to 12 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m
Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
- NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Audio
- 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 12 VDC, 30 mA)
- Reset KeyYes
Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventFace detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- Deep Learning Function
- Perimeter Protection
- Line crossing, intrusion
- Support alarm triggering by specified target types (human and vehicle)
General
- Power
- 12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- DimensionØ138.3 mm × 126 mm (Ø5.5″ × 5.0″)
- Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
- WeightApprox. 830 g (1.8 lb.)
- With Package WeightApprox. 1115 g (2.5 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, password reset via email, pixel counter, anti-banding
Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
