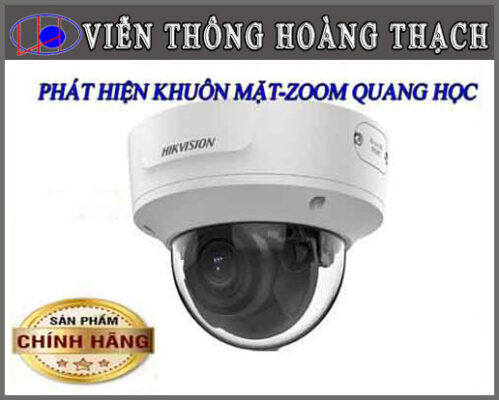

DS-2CD2743G2-IZS 4.0MP Phát Hiện Khuôn Mặt

• Cảm biến 1/3″ Progressive Scan CMOS

• Độ phân giải 2688 × 1520@25fps
• Ống kính thay đổi tiêu cự 2.8-12mm
• Độ nhạy sáng 0.005Lux@F1.6
• Hồng ngoại 40m
• 120dB WDR, AGC, BLC, 3D DNR, HLC
• Khe cắm thẻ nhớ microroSD 256GB (max)
• Phát hiện khuôn mặt, Hỗ trợ cổng cắm âm thanh, báo động
• Nguồn 12VDC, PoE
• IP67, IK10, Ø 153.3 mm × 111.6 mm, 880g

THÔNG SỐ KỸ THUẬT CHI TIẾT DATA SHEET

• Camera

• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Time1/3 s to 1/100,000 s
• Day & NightICR Cut
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens

• Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

• Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)Yes
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central

• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR

• Interface

• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD, up to 256 GB

• Audio

  -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset KeyYes

• Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

  Face detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

• General

• Power

  12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• DimensionØ153.3 × 111.6 mm (Ø6.1″ × 4.4″)
• Package Dimension244 × 174 × 173 mm (9.7″ × 6.9″ × 6.9″)
• Approx. 880 g (1.9 lb.)
• With Package WeightApprox. 1419 g (3.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

• Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
