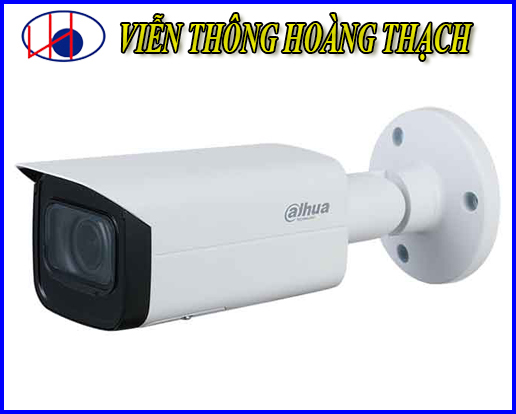

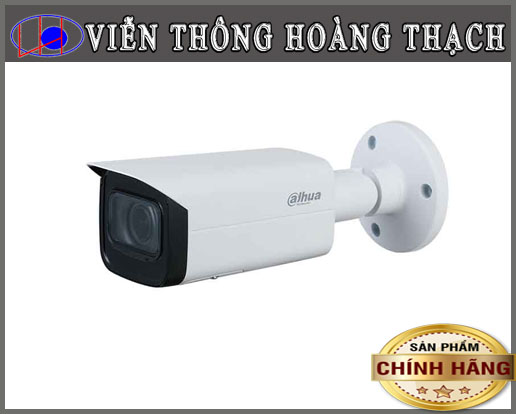

DH-IPC-HFW3241TP-ZAS CAMERA IP THÔNG MINH DAHUA
Giá: 3,384,000 đ
Giá thị trường 9,824,000 đ Tiết kiệm: 66%
DH-IPC-HFW3241TP-ZAS CAMERA IP THÔNG MINH DAHUA
• Độ phân giải 2 Megapixel cảm biến CMOS kích thước 1/2.8”.
• 25/30fps@1080P
• Hỗ trợ Starlight với độ nhạy sáng cực thấp 0.002Lux@F1.6.
• Chuẩn nén H265+
• Hỗ trợ chức năng phát hiện thông minh: Hàng rào ảo, Xâm nhập (phân biệt người và xe)
• Tìm kiếm thông minh: Tìm kiếm nhanh sự kiện theo từng đối tượng(người, xe)
• Chống ngược sáng WDR(120dB)
• Chế độ ngày đêm (ICR),, tự động cân bằng trắng (AWB), tự động bù sáng (AGC), chống ngược sáng(BLC), chống nhiễu (3D-DNR).
• Tầm xa hồng ngoại 60m với công nghệ hồng ngoại thông minh
• Hỗ trợ khe cắm thẻ nhớ 256GB
• 1/1 Alarm in/out, 1/1 audio in/out
• Hỗ trợ tên miền DSSDDNS, P2P
• Tiêu cự điều chỉnh 2.7 - 13.5mm
• Chuẩn tương thích Onvif 2.4.
• Chuẩn chống nước IP67
• Điện áp DC12V hoặc PoE (802.3af), công suất <9.4W
• Nhiệt độ hoạt động : -40° C ~ +60° C.
• Chất liệu kim loại.
THÔNG SỐ KỸ THUẬT CHI TIẾT DATA SHEET
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8”2Megapixel progressive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) ×1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.002 Lux@F1.5 (Color, 30IRE) 0.0002 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
60 m (197 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
4 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
φ14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7 mm–13.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 108°–28° Vertical: 57° –16° Diagonal: 130° –33° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.8 m (2.6 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
W |
44.1 m (144.7 ft) |
17.6 m (57.7 ft) |
8.8 m (28.9 ft) |
4.4 m (14.4 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
T |
153.1 m (502.3 ft) |
61.2 m (200.8 ft) |
30.6 m (82.9 ft) |
15.3 m (50.2 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Professional, Intelligent |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
Tripwire; intrusion (Recognition of human and vehicle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream (1920 × 1080@1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 3 Kbps–8192 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711Mu; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE8, IE9, IE11 Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
1 channel in: 5mA 3V–5V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 channel out: 300mA 12V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<9.4W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
820 g (1.8lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1090 g (2.4lb) |
